SKY77162 - System Smart Power Amplifier Module

Datasheet Summary

Features

  • Low voltage positive bias supply - 3.2 V to 4.2 V.
  • Low VREF - 2.85 V, nominal.
  • Low IREF - less than 1 mA.
  • Good linearity.
  • High efficiency.
  • Large dynamic range.
  • 8-pad package - 3 x 3 x 1.2 mm.
  • Power down control.
  • Dynamic bias control.
  • InGaP.
  • IS95.
  • CDMA2000.
  • EVDO MODULE VREF (4) VCONT (3) VCC2 (8) Driver Stage Bias VCC1 (1) Power Stage Bias MMIC Skyworks offers lead (Pb)-free "e.

📥 Download Datasheet

Datasheet preview – SKY77162

Datasheet Details

Part number SKY77162
Manufacturer Skyworks Solutions
File Size 252.57 KB
Description System Smart Power Amplifier Module
Datasheet download datasheet SKY77162 Datasheet
Additional preview pages of the SKY77162 datasheet.

📁 Similar Datasheet

  • SKY77148 - PA Module for CDMA2000 (450-460 MHz) (ETC)
  • SKY77518 - TX-RX iPAC FEM (Skyworks)
  • SKY77518-21 - FEM FOR DUAL-BAND GSM/GPRS (Skyworks)
  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
Other Datasheets by Skyworks Solutions

Full PDF Text Transcription

Click to expand full text

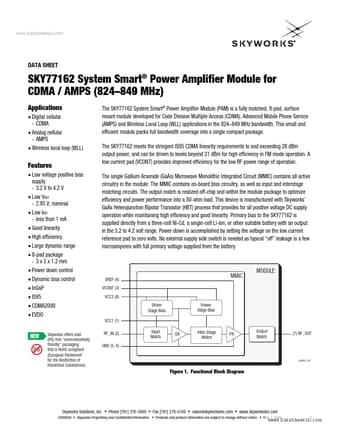

www.DataSheet4U.com DATA SHEET SKY77162 System Smart® Power Amplifier Module for CDMA / AMPS (824–849 MHz) Applications • Digital cellular - CDMA • Analog cellular - AMPS • Wireless local loop (WLL) The SKY77162 System Smart® Power Amplifier Module (PAM) is a fully matched, 8-pad, surface mount module developed for Code Division Multiple Access (CDMA), Advanced Mobile Phone Service (AMPS) and Wireless Local Loop (WLL) applications in the 824–849 MHz bandwidth. This small and efficient module packs full bandwidth coverage into a single compact package. The SKY77162 meets the stringent IS95 CDMA linearity requirements to and exceeding 28 dBm output power, and can be driven to levels beyond 31 dBm for high efficiency in FM mode operation.
