SKY77166 - Power Amplifier Module

Datasheet Summary

Description

The SKY77166 Power Amplifier Module (PAM) is a fully matched 10-pad surface mount module developed for Code Division Multiple Access (CDMA2000) handsets and Wireless Local Loop applications.

460 MHz bandwidth into a single compac

Features

  • Low voltage positive bias supply: 3.2 V to 4.2 V.
  • Good linearity.
  • High efficiency across wide dynamic range.
  • Dual-mode operation.
  • 10-pad package: 4 x 4 x 1.15 mm.
  • Power down control.
  • Low power state control.

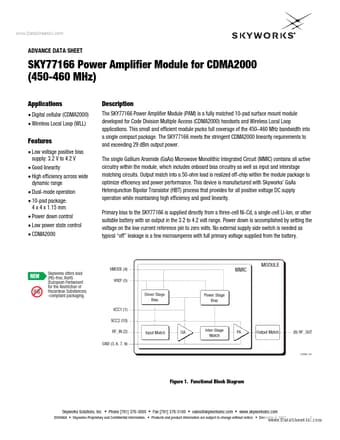

  • CDMA2000 Skyworks offers lead (Pb)-free, RoHS (European Parliament for the Restriction of Hazardous Substances) -compliant packaging. Figure 1. Functional Block Diagram Skyworks Solutions, Inc.
