SKY77806

Multiband Front-End Module

SKY77806 Features

* SkyShield™ shielded module

* Average Power Tracking (APT)

* 50 ohm input/output impedance with internal DC-blocking

* Temperature Sensor

* MiPi RFFE Control Interface w/ 1.8 V Nominal Supply, Separate Vcc1/Vcc2, Completely Operable for VIO High and Vbatt Low

SKY77806 General Description

The SKY77806, a multiband LTE Front-End Module (FEM), efficiently supports 4G handset operation. The FEM consists of a PA block, a logic control block for multiple power control levels, band enable functions, and integrated duplex filters with single-ended receive outputs. The RF I/O ports internall.

SKY77806 Datasheet (181.46 KB)

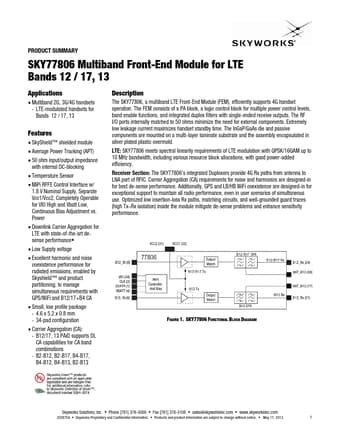

Preview of SKY77806 PDF

Datasheet Details

Part number:

SKY77806

Manufacturer:

Skyworks Solutions

File Size:

181.46 KB

Description:

Multiband front-end module.
PRODUCT SUMMARY SKY77806 Multiband Front-End Module for LTE Bands 12 / 17, 13 Applications

* Multiband 2G, 3G/4G handsets - LTE-modulated han.
