CXA3197R, 10-bit 125MSPS D/A Converter

CXA3197R 10-bit 125MSPS D/A Converter .
The CXA3197R is a high-speed D/A converter which can perform multiplexed input of two system 10-bit data.

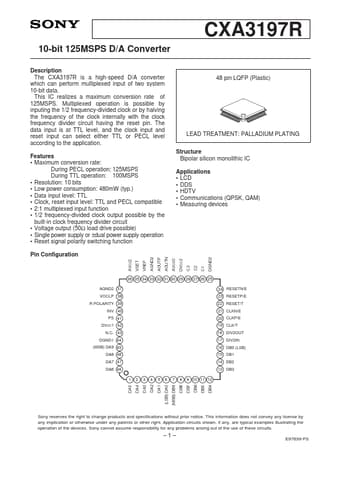

datasheet Preview Page 1 from Datasheet4u.com

CXA3197R_SonyCorporation.pdf

CXA3197R Datasheet Preview — Preview of CXA3197R PDF

Datasheet Details

Part number:

CXA3197R

Manufacturer:

Sony Corporation

File Size:

347.82 KB

Description:

10-bit 125MSPS D/A Converter

Features

* Maximum conversion rate: During PECL operation: 125MSPS During TTL operation: 100MSPS
* Resolution: 10 bits
* Low power consumption: 480mW (typ. )
* Data input level: TTL
* Clock, reset input level: TTL and PECL compatible
* 2:1 multiplexed input func

Applications

* LCD
* DDS
* HDTV
* Communications (QPSK, QAM)
* Measuring devices 36 35 34 33 32 31 30 29 28 27 26 25 AGND2 37 VOCLP 38 R POLARITY 39 INV 40 PS 41 DVCC1 42 N. C. 43 DGND1 44 (MSB) DA9 45 DA8 46 DA7 47 DA6 48 1 2 3 4 5 6 7 8 9 10 11 12 24 RESETN/E 23 RESETP/E
