CXA3199TN - Wideband Pre-amplifier

Sony Corporation

📥 Download Datasheet

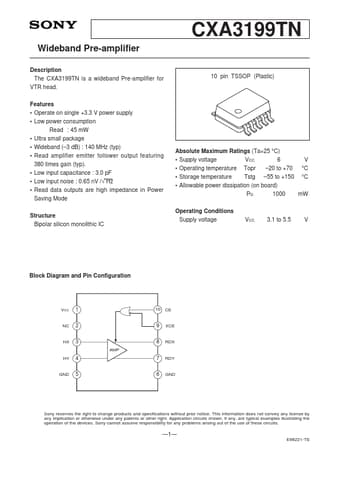

CXA3199TN Datasheet Preview — Preview of CXA3199TN PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA3199TN
Manufacturer	Sony Corporation
File Size	161.78 KB
Description	Wideband Pre-amplifier
Datasheet	CXA3199TN_SonyCorporation.pdf

CXA3199TN Product details

Description

The CXA3199TN is a wideband Pre-amplifier for VTR head.

Features

Operate on single +3.3 V power supply.
Low power consumption Read : 45 mW.
Ultra small package.
Wideband (.
3 dB) : 140 MHz (typ).
Read amplifier emitter follower output featuring 380 times gain (typ).
Low input capacitance : 3.0 pF.
Low input noise : 0.65 nV /√ Hz.
Read data outputs are high impedance in Power Saving Mode Structure Bipolar silicon monolithic IC 10 pin TSSOP (Plastic) Absolute Maximum Ratings (Ta=2.
