THC63LVDF64B - (THC63LVDF64B / THC63LVDF84B) LVDS Color Host-LCD Panel Interface Receiver

THine Electronics

📥 Download Datasheet

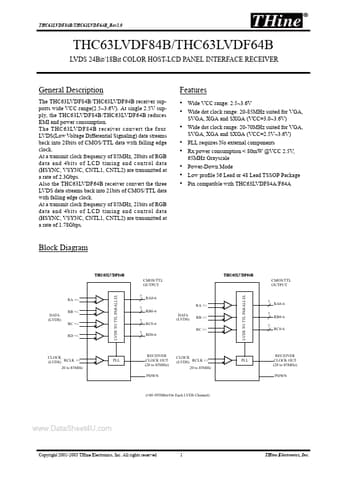

THC63LVDF64B Datasheet Preview — Preview of THC63LVDF64B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: THC63LVDF64B
Manufacturer: THine Electronics
File Size: 197.88 KB
Datasheet: THC63LVDF64B_THineElectronics.pdf
Description: (THC63LVDF64B / THC63LVDF84B) LVDS Color Host-LCD Panel Interface Receiver

THC63LVDF64B Product details

Description

The THC63LVDF84B/THC63LVDF64B receiver supports wide VCC range(2.5~3.6V).

Features

Wide VCC range: 2.5~3.6V.
Wide dot clock range: 20-85MHz suited for VGA,.
SVGA, XGA and SXGA (VCC=3.0~3.6V) Wide dot clock range: 20-70MHz suited for VGA, SVGA, XGA and SXGA (VCC=2.5V~3.6V).
PLL requires No external components.
Rx power consumption < 80mW @VCC 2.5V, 65MHz Grayscale.
Power-Down Mode.
Low profile 56 Lead or 48 Lead TSSOP Package.
Pin compatible with THC63LVDF84A/F64A Block Diagram THC63LVDF84B CMOS/TTL OU.
