IRF840AL Power MOSFET

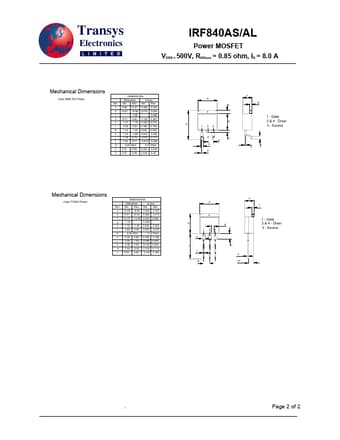

IRF840AS/AL Power MOSFET VDSS = 500V, RDS(on) = 0.85 ohm, ID = 8.0 A Mechanical Dimensions Case SMB 220 Plastic DIMENSIONS Millimetres Inches Dim Min Max Min Max a 9.85 10.67 0.380 0.420 b 14.61 15.88 0.575 0.625 c 1.65 0.065 d 8.51 9.65 0.335 0.380 e 1.27 1.78 0.050 0.070 f 4.08 4.83 0.180 0.190 g 1.14 1.40 0.045 0.055 h 1.15 1.400 0.045 0.055 j 1.78 2.79 0.070 0.110 k 0.38 0.77 0.015 0.029 m 2.54 Pitch 0.10 Pitch n 0.51 0.99 0.020 0.038 p 0.51 0.89 0.020 0.35 a c 4 d b 1 23.

IRF840AL Datasheet (121.34 KB)

IRF840AL Datasheet Preview — Preview of IRF840AL PDF

Datasheet Details

Part number:

IRF840AL

Manufacturer:

TRANSYS

File Size:

121.34 KB

Description:

Power mosfet.
