XP233P1501TR-G

P-channel MOSFET

XP233P1501TR-G Features

* On-State Resistance Driving voltage Environmentally Friendly : RDS(on)＝0.19Ω@VGS =-10V : -4.5V : EU RoHS Compliant, Pb Free

* EQUIVALENT CIRCUIT

* APPLICATIONS

* Switching

* PIN CONFIGURATION

* SOT-23(TO-236) Drain Gate Source

* PRODUCT NAME PRODUCT NAME PACKAGE ORDER UNI

XP233P1501TR-G Datasheet (303.40 KB)

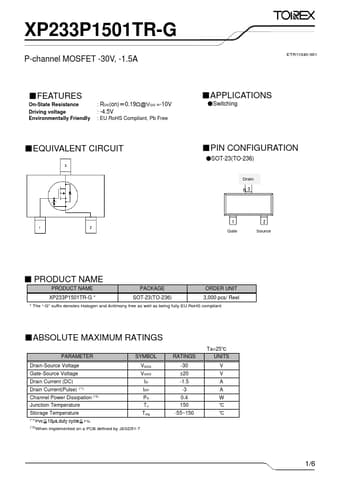

Preview of XP233P1501TR-G PDF

Datasheet Details

Part number:

XP233P1501TR-G

Manufacturer:

Torex Semiconductor

File Size:

303.40 KB

Description:

P-channel mosfet.
