XP2335YT Datasheet - YAGEO

XP2335YT, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

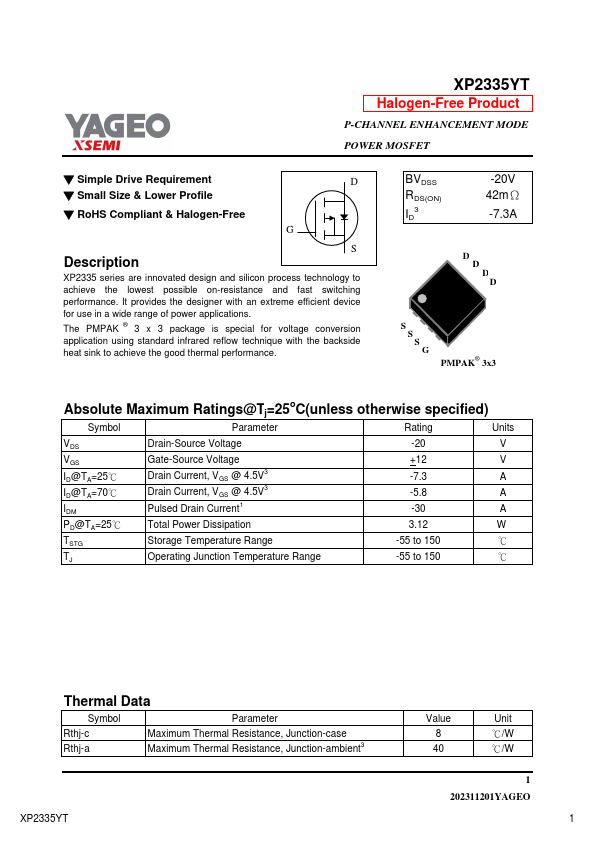

XP2335YT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Size & Lower Profile ▼ RoHS Compliant &.
XP2335 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

datasheet Preview Page 1 from Datasheet4u.com

XP2335YT-YAGEO.pdf

XP2335YT Datasheet Preview — Preview of XP2335YT PDF

Datasheet Details

Part number:

XP2335YT

Manufacturer:

YAGEO

File Size:

243.00 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3 x 3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) ID3 -20V 42mΩ -7.3A D D D D S S S G PMPAK® 3x3 Absolute Maximum Ratings@Tj=25oC(unless otherwise

XP2335YT Distributors
