1SS336 Datasheet - Toshiba Semiconductor

1SS336 Diode

TOSHIBA Diode Silicon Epitaxial Planar Type 1SS336 Ultra High Speed Switching Application 1SS336 Unit: mm z Small package : SC-59 z Low forward voltage : VF (3) = 0.84V (typ.) z Fast reverse recovery time : trr = 7ns (typ.) z Small total capacitance : CT = 7pF (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Maximum (peak) reverse voltage VRM 85 V Reverse voltage VR 80 V Maximum (peak) forward current Average forward current Surge current (10ms) Pow.

1SS336 Datasheet (256.57 KB)

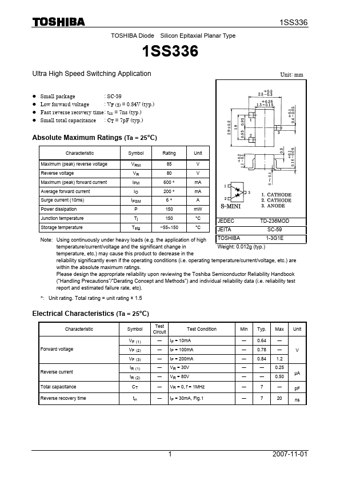

Preview of 1SS336 PDF
1SS336 Datasheet Preview Page 2 1SS336 Datasheet Preview Page 3

Datasheet Details

Part number:

1SS336

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

256.57 KB

Description:

Diode.
