K3797 2SK3797

K3797 Description

2SK3797 TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (π-MOSVI) www.DataSheet4U.com 2SK3797 Unit: mm Switching Regulator Applications <.

K3797 Applications

* Low drain-source ON resistance: RDS (ON) = 0.32Ω (typ. ) High forward transfer admittance: |Yfs| = 7.5 S (typ. ) Low leakage current: IDSS = 100 μA (VDS = 600 V) Enhancement model: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Cha

📥 Download Datasheet

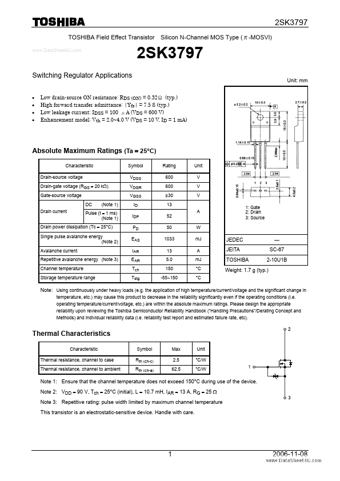

Preview of K3797 PDF
datasheet Preview Page 2 datasheet Preview Page 3
