MT3S111TU Datasheet - Toshiba Semiconductor

MT3S111TU, Silicon-Germanium NPN Epitaxial Planar Type Transistor

TOSHIBA Transistor Silicon-Germanium NPN Epitaxial Planar Type MT3S111TU MT3S111TU VHF-UHF Low-Noise, Low-Distortion Amplifier Application .

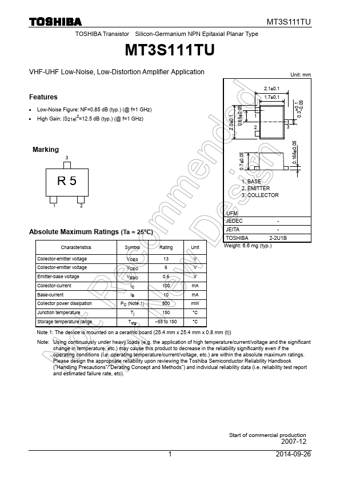

datasheet Preview Page 1 from Datasheet4u.com

MT3S111TU-ToshibaSemiconductor.pdf

MT3S111TU Datasheet Preview — Preview of MT3S111TU PDF

Datasheet Details

Part number:

MT3S111TU

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

355.03 KB

Description:

Silicon-Germanium NPN Epitaxial Planar Type Transistor

Features

* Low-Noise Figure: NF=0.85 dB (typ. ) (@ f=1 GHz)
* High Gain: |S21e|2=12.5 dB (typ. ) (@ f=1 GHz) 2.0±0.1 0.65±0.05 2.1±0.1 1.7±0.1 Unit: mm 0.3-+00..015 1 2 3 0.166±0.05 0.7±0.05 Marking 3 R5 1 2 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Un
