* High speed: tpd = 6 ns (typ.) at VCC = 5 V
* Low power dissipation: ICC = 1 μA (max) at Ta = 25°C
* High noise immunity: VNIH = VNIL = 28% VCC (min)
* Output drive capability: 10 LSTTL loads
* Symmetrical output impedance: |IOH| = IOL = 4 mA (min)

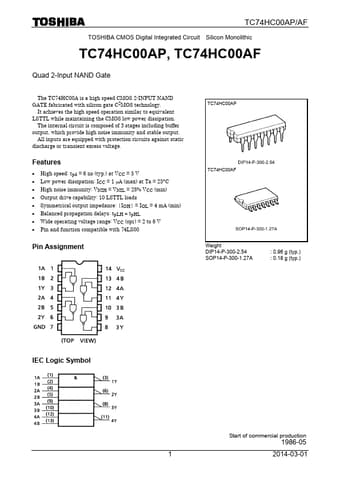

TC74HC00AF Datasheet (191.07 KB)
TC74HC00AF
Toshiba ↗ Semiconductor
191.07 KB
Quad 2-input nand gate.
TC74HC00AP/AF
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC74HC00AP, TC74HC00AF
Quad 2-Input NAND Gate
The TC74HC00A is a high speed .
