TC74HC03AP

Quad 2-Input NAND Gate

TC74HC03AP Features

* High speed: tpz = 5 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 1 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Output drive capability: 10 LSTTL loads

* Wide operating voltage range: VCC (opr) = 2 to 6 V

TC74HC03AP Datasheet (205.56 KB)

Preview of TC74HC03AP PDF

Datasheet Details

Part number:

TC74HC03AP

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

205.56 KB

Description:

Quad 2-input nand gate.

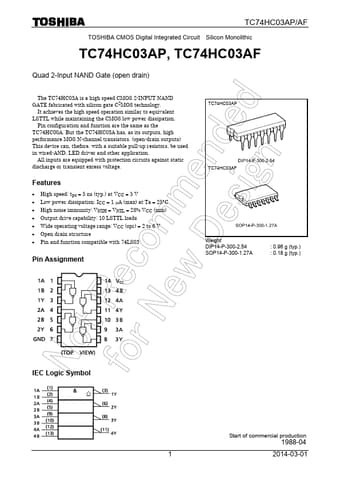

TC74HC03AP/AF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74HC03AP, TC74HC03AF Quad 2-Input NAND Gate (open drain) The TC74HC03A is .
