TC74HC00AP, TC74HC00AF Datasheet - Toshiba Semiconductor

TC74HC00AP - Quad 2-Input NAND Gate

TC74HC00AP/AF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74HC00AP, TC74HC00AF Quad 2-Input NAND Gate The TC74HC00A is a high speed CMOS 2-INPUT NAND GATE fabricated with silicon gate C2MOS technology.

It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.

All inputs are equipped with protection ci

TC74HC00AP Features

* High speed: tpd = 6 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 1 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Output drive capability: 10 LSTTL loads

* Symmetrical output impedance: |IOH| = IOL = 4 mA (min)

TC74HC00AF_ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TC74HC00AP, TC74HC00AF. Please refer to the document for exact specifications by model.

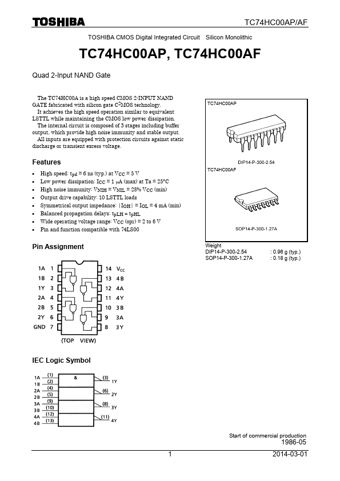

TC74HC00AP Datasheet Preview Page 2 TC74HC00AP Datasheet Preview Page 3
