TC74HC02AFN, TC74HC02AF Datasheet - Toshiba Semiconductor

TC74HC02AFN, TC74HC02AF, Quad 2-Input NOR Gate

www.DataSheet.co.kr TC74HC02AP/AF/AFN TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74HC02AP,TC74HC02AF,TC74HC02AFN Quad 2-Input NOR .

datasheet Preview Page 1 from Datasheet4u.com

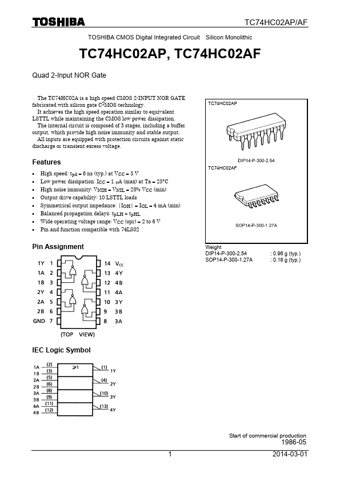

TC74HC02AF_ToshibaSemiconductor.pdf

TC74HC02AFN Datasheet Preview — This datasheet PDF includes multiple part numbers: TC74HC02AFN, TC74HC02AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC74HC02AFN, TC74HC02AF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

199.23 KB

Description:

Quad 2-Input NOR Gate

Note:

This datasheet PDF includes multiple part numbers: TC74HC02AFN, TC74HC02AF.
Please refer to the document for exact specifications by model.

Features

* High speed: tpd = 6 ns (typ. ) at VCC = 5 V Low power dissipation: ICC = 1 μA (max) at Ta = 25°C High noise immunity: VNIH = VNIL = 28% VCC (min) Output drive capability: 10 LSTTL loads Symmetrical output impedance: |IOH|

Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which ma
