TC74HC02AF

Quad 2-Input NOR Gate

TC74HC02AF Features

* High speed: tpd = 6 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 1 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Output drive capability: 10 LSTTL loads

* Symmetrical output impedance: |IOH| = IOL = 4 mA (min)

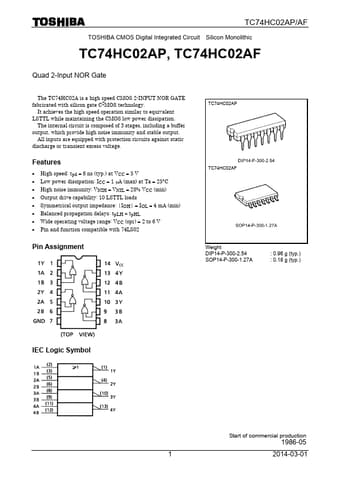

TC74HC02AF Datasheet (199.23 KB)

Preview of TC74HC02AF PDF

Datasheet Details

Part number:

TC74HC02AF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

199.23 KB

Description:

Quad 2-input nor gate.
TC74HC02AP/AF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74HC02AP, TC74HC02AF Quad 2-Input NOR Gate The TC74HC02A is a high speed C.
