TC74HC03AF Quad 2-Input NAND Gate

TC74HC03AP/AF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74HC03AP, TC74HC03AF Quad 2-Input NAND Gate (open drain) The TC74HC03A is a high speed CMOS 2-INPUT NAND GATE fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. Pin configuration and function are the same as the TC74HC00A. But the TC74HC03A has, as its outputs, high performance MOS N-channel transistors. (open-d.

TC74HC03AF Features

* High speed: tpz = 5 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 1 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Output drive capability: 10 LSTTL loads

* Wide operating voltage range: VCC (opr) = 2 to 6 V

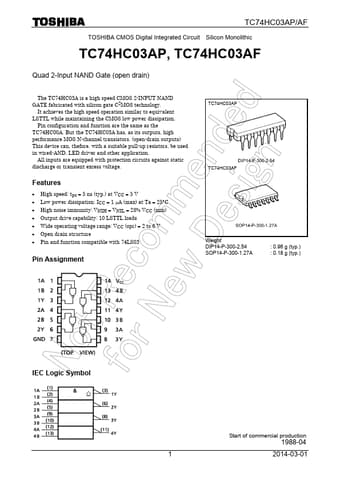

TC74HC03AF Datasheet (205.56 KB)

TC74HC03AF Datasheet Preview — Preview of TC74HC03AF PDF

Datasheet Details

Part number:

TC74HC03AF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

205.56 KB

Description:

Quad 2-input nand gate.
