TC58NVG1S3HTA00 - 2 GBIT (256M x 8 BIT) CMOS NAND E2PROM

Name: TC58NVG1S3HTA00
SKU: TC58NVG1S3HTA00-947364

Toshiba

📥 Download Datasheet

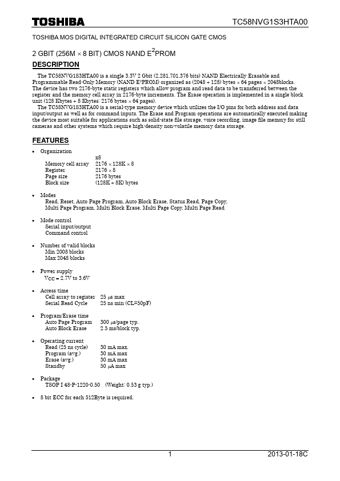

TC58NVG1S3HTA00 Datasheet Preview — Preview of TC58NVG1S3HTA00 PDF

Datasheet Details

Part number	TC58NVG1S3HTA00
Manufacturer	Toshiba
File Size	706.98 KB
Description	2 GBIT (256M x 8 BIT) CMOS NAND E2PROM
Datasheet	TC58NVG1S3HTA00-Toshiba.pdf

TC58NVG1S3HTA00 Product details

Description

The TC58NVG1S3HTA00 is a single 3.3V 2 Gbit (2,281,701,376 bits) NAND Electrically Erasable and Programmable Read-Only Memory (NAND E2PROM) organized as (2048  128) bytes  64 pages  2048blocks.

Features

Organization Memory cell array Register Page size Block size x8 2176  128K  8 2176  8 2176 bytes (128K  8K) bytes.
Modes Read, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy, Multi Page Program, Multi Block Erase, Multi Page Copy, Multi Page Read.
Mode control Serial input/output Command control.
Number of valid blocks Min 2008 blocks Max 2048 blocks.
Power supply VCC  2.7V to 3.6V.
Access time Cell array to register 25 s max Seria.
