QM18N20D - N-Channel 200V Fast Switching MOSFET

UBIQ

📥 Download Datasheet

QM18N20D Datasheet Preview — Preview of QM18N20D PDF

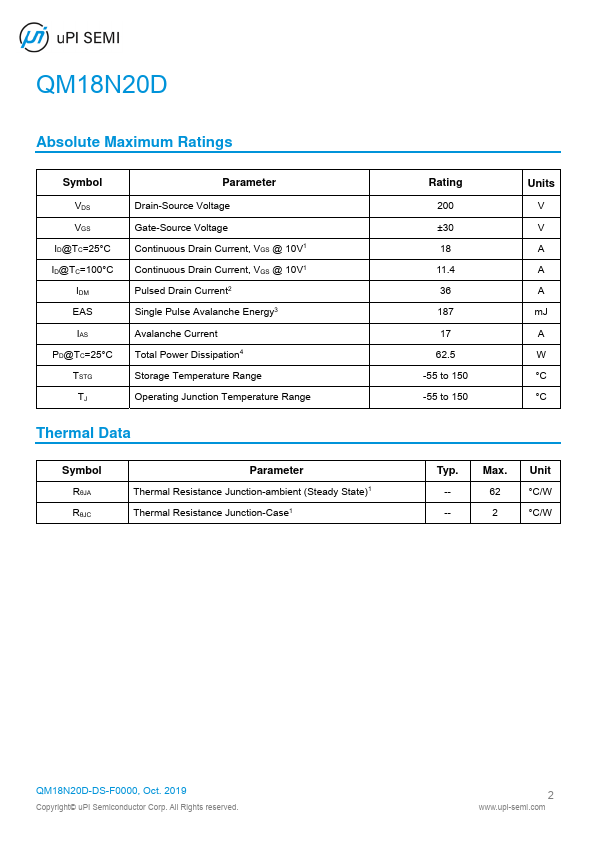

datasheet Preview Page 2

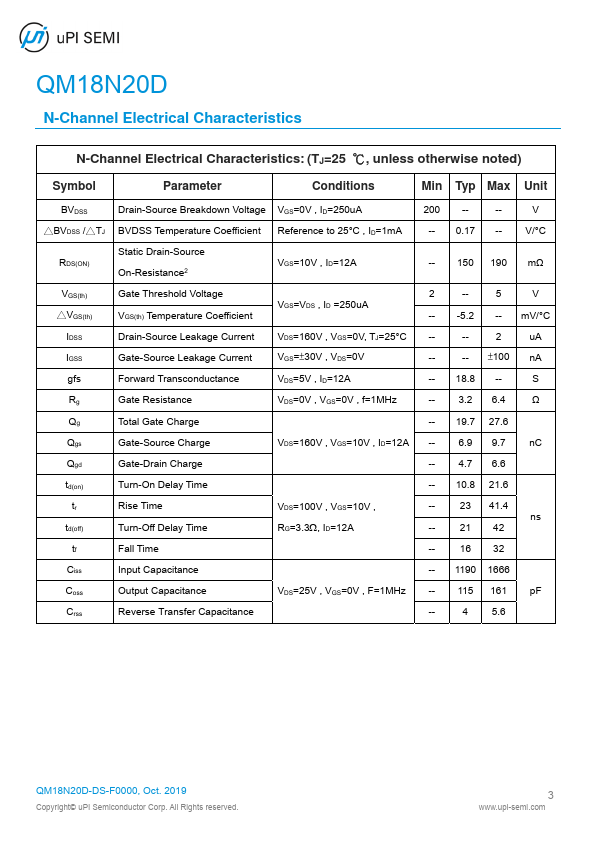

datasheet Preview Page 3

Datasheet Details

Part number	QM18N20D
Manufacturer	UBIQ
File Size	408.38 KB
Description	N-Channel 200V Fast Switching MOSFET
Datasheet	QM18N20D-UBIQ.pdf

QM18N20D Product details

Description

The QM18N20D is a high performance N-channel MOSFET which utilizes high voltage technology to provide low Rdson and gate charge characteristics.

Features

Super Low Gate Charge.
Excellent CdV/dt effect decline.
Green Device Available Product Summary VDS 200V RDS(ON) max (VGS=10V) 190 mΩ ID (TC=25 °C) 18A.
