Part number:
2SB688
Manufacturer:
UTC
File Size:
161.10 KB
Description:

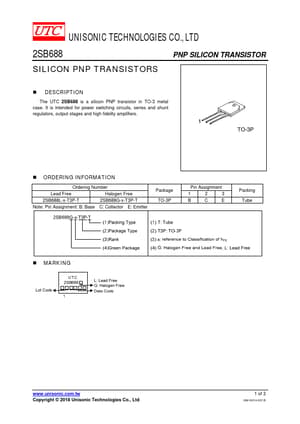

Silicon pnp transistors.
* Complementary to 2SD718.
* Recommended for 45 ~ 50W Audio Frequency Amplifier Output Stage. 1 TO-3P 1: BASE 2: COLLECTOR 3: EMITTER
* Pb-free plating product number: 2SB688L ABSOLUTE MAXIMUM RATINGS (Ta=25℃) PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter Base Volt
2SB688
UTC
161.10 KB
Silicon pnp transistors.
