MC34063

DC to DC Converter Controller

MC34063 Features

* Operation from 3.0V to 40V.

* Short circuit current limiting.

* Low standby current.

* Output switch current of 1.5A without external transistors.

* Frequency of operation from 100Hz to 100kHz.

* Step-up, step-down or inverting switch regulators. DIP-8 PIN CONFIGURATION Switch

MC34063 General Description

The UTC MC34063 is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulat.

MC34063 Datasheet (354.16 KB)

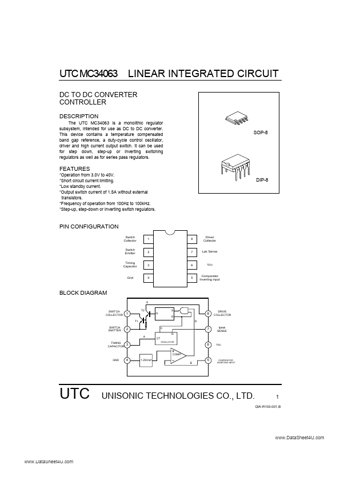

Preview of MC34063 PDF

Datasheet Details

Part number:

MC34063

Manufacturer:

Unisonic Technologies

File Size:

354.16 KB

Description:

Dc to dc converter controller.
