U74ACT04 Datasheet, Inverters, Unisonic Technologies

U74ACT04 Features

  • Inverters
  • Inputs are TTL Voltage Compatible CMOS IC DIP-14 SOP-14 TSSOP-14
  • ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74ACT04L-D14-T U74ACT04G-D14-T

PDF File Details

Part number:

U74ACT04

Manufacturer:

Unisonic Technologies

File Size:

180.86kb

Download:

📄 Datasheet

Description:

Hex inverters. The UTC U74ACT04 contains six independent inverters and each of them performs the Boolean function Y=A . FEATURES

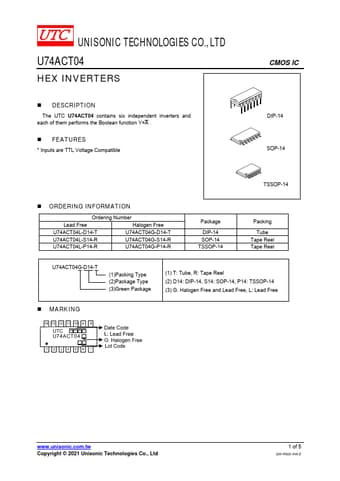

Datasheet Preview: U74ACT04 📥 Download PDF (180.86kb)
Page 2 of U74ACT04 Page 3 of U74ACT04
