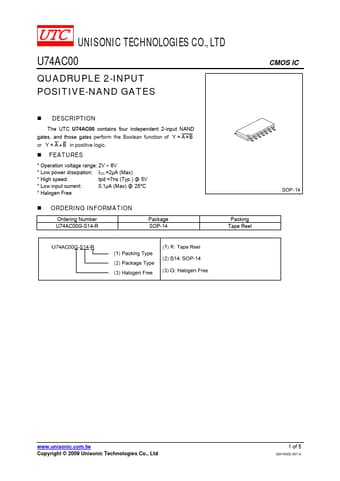

U74AC00 Datasheet, Gates, Unisonic Technologies

U74AC00 Features

• Gates
• Operation voltage range: 2V ~ 6V
• Low power dissipation: ICC =2μA (Max)
• High speed: tpd =7ns (Typ.) @ 5V
• Low input current: 0.1μA (Max) @ 25°C

PDF File Details

Part number:

U74AC00

Manufacturer:

Unisonic Technologies

File Size:

213.56kb

Download:

📄 Datasheet

Description:

Quadruple 2-input positive-nand gates. The UTC U74AC00 contains four independent 2-input NAND gates, and those gates perform the Boolean function of Y = A × B or Y = A + B
