U74AC32 - QUADRUPLE 2-INPUT POSITIVE-OR GATE

U74AC32 Description

UNISONIC TECHNOLOGIES CO., LTD U74AC32 QUADRUPLE 2-INPUT POSITIVE-OR GATE * .
The U74AC32 is a quad 2-input positive-OR gate. B in positive logic. FEATURES.

U74AC32 Features

* Operation Voltage Range: 2~6V
* Inputs Accept Voltages to 6V
* Max tpd of 7.5 ns at 5V
* ORDERING INFORMATION Ordering Number U74AC32G-S14-R U74AC32G-P14-R Package SOP-14 TSSOP-14 CMOS IC Packing Tape Reel Tape Reel
* MARKING SOP-14 TSSOP-14 14 13 12 11 10 9 8 UTC U74AC3

📥 Download Datasheet

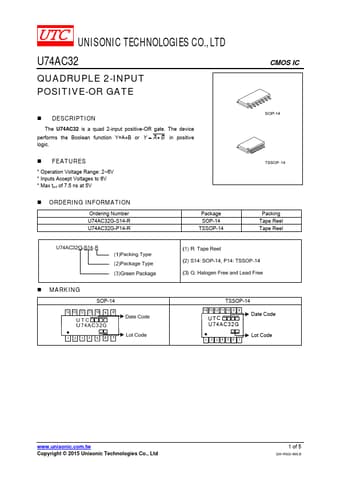

Preview of U74AC32 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74AC32
Manufacturer
Unisonic Technologies
File Size
189.30 KB
Datasheet
U74AC32-UnisonicTechnologies.pdf
Description
QUADRUPLE 2-INPUT POSITIVE-OR GATE
