U74ACT00 - QUADRUPLE 2-INPUT POSITIVE-NAND GATES

U74ACT00 Description

UNISONIC TECHNOLOGIES CO., LTD U74ACT00 QUADRUPLE 2-INPUT POSITIVE-NAND GATES * .
The UTC U74ACT00 contains four independent 2-input positive-nand gates. B or Y=A  B. FEATURES.

U74ACT00 Features

* Operation Voltage Range: 4.5~5.5V
* Low Power Dissipation: ICC=2μA (Max. )
* High Noise Immunity
* Compatible With TTL Output
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74ACT00L-S14-R U74ACT00G-S14-R Package SOP-14 CMOS IC Packing Tape Reel
* MAR

📥 Download Datasheet

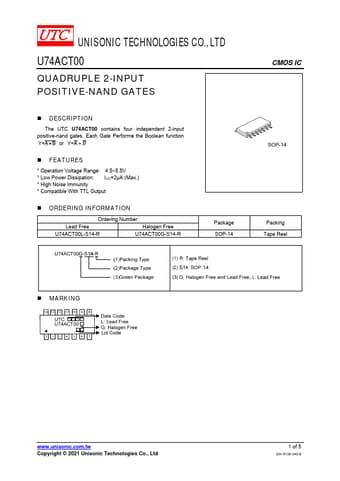

Preview of U74ACT00 PDF
