U74ACT240 - OCTAL BUFFERS/DRIVERS

Product Overview

Unisonic Technologies

Datasheet Details

Part number	U74ACT240
Manufacturer	Unisonic Technologies
File Size	240.05 KB
Description	OCTAL BUFFERS/DRIVERS
Datasheet	U74ACT240 Datasheet

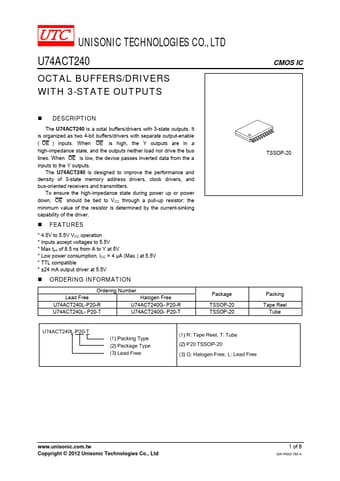

Additional preview pages of the U74ACT240 datasheet.

Product details

Description

CMOS IC The U74ACT240 is a octal buffers/drivers with 3-state outputs.It is organized as two 4-bit buffers/drivers with separate output-enable ( OE ) inputs.When OE is high, the Y outputs are in a high-impedance state, and the outputs neither load nor drive the bus lines.When OE is low, the device passes inverted data from the a inputs to the Y outputs.The U74ACT240 is designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receive

Features

ES.
4.5V to 5.5V VCC operation.
Inputs accept voltages to 5.5V.
Max tpd of 8.5 ns from A to Y at 5V.
Low power consumption, ICC = 4 μA (Max. ) at 5.5V.
TTL compatible.
±24 mA output driver at 5.5V www. DataSheet. net/.
