U74ACT32 Datasheet, Gates, UTC

U74ACT32 Features

• Gates
• Operation Voltage Range: 4.5~5.5V
• Low Power Dissipation: ICC=2μA (Max.)
• High Noise Immunity
• Compatible With TTL Output
• ORDERING INFORM

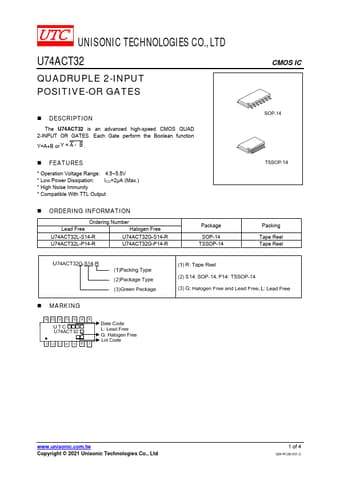

PDF File Details

Part number:

U74ACT32

Manufacturer:

UTC

File Size:

204.79kb

Download:

📄 Datasheet

Description:

Quadruple 2-input positive-or gates. The U74ACT32 is an advanced high-speed CMOS QUAD 2-INPUT OR GATES. Each Gate perform the Boolean function Y=A+B or Y = A‧ B . <
