U74ACT08

QUAD 2-INPUT AND GATE

U74ACT08 Datasheet (173.18 KB)

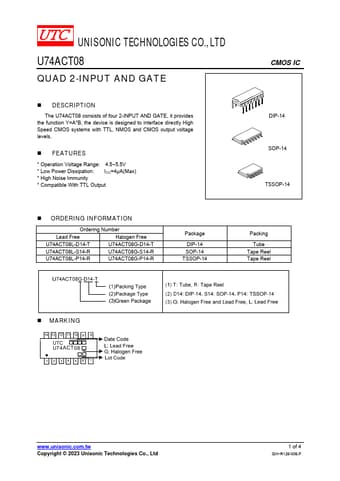

Preview of U74ACT08 PDF Datasheet

Datasheet Details

Part number:

U74ACT08

Manufacturer:

Unisonic Technologies

File Size:

173.18 KB

Description:

Quad 2-input and gate

U74ACT08 Features

* Operation Voltage Range: 4.5~5.5V

* Low Power Dissipation: ICC=4μA(Max)

* High Noise Immunity

* Compatible With TTL Output CMOS IC DIP-14 SOP-14 TSSOP-14

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74ACT08L-D14-T U74ACT08G-D14-T U74ACT08L-S14-R U74AC

U74ACT08 General Description

The U74ACT08 consists of four 2-INPUT AND GATE, it provides the function Y=A
*B, the device is designed to interface directly High Speed CMOS systems with TTL, NMOS and CMOS output voltage levels.
* FEATURES
* Operation Voltage Range: 4.5~5.5V
* Low Power Dissipation: ICC=4μA(Max)
