U74AC04 - HEX INVERTERS

U74AC04 Description

UNISONIC TECHNOLOGIES CO., LTD U74AC04 HEX INVERTERS * .
CMOS IC The U74AC04 contains six independent inverters and performs the Boolean function Y= A in positive logic circuit. FEATURES.

U74AC04 Features

* Operation Voltage Range: VCC =2V to 6V
* High Speed: tPD=4ns(TYP. ) at VCC =5V
* Low Input Current: IIN=0.1μA(Max. ) at TA =25°C
* Low Power Dissipation: ICC=2μA(Max. ) at TA =25°C
* ORDERING INFORMATION Ordering Number U74AC04G-S14-R U74AC04G-P14-R Package SOP-14 TSSOP-14

📥 Download Datasheet

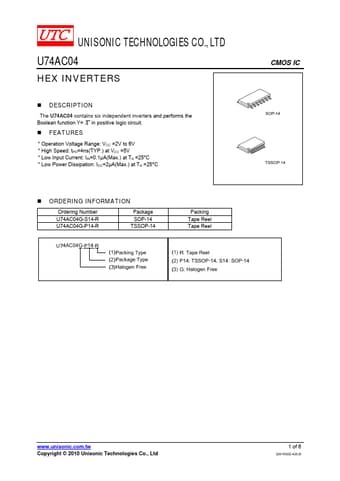

Preview of U74AC04 PDF
datasheet Preview Page 2 datasheet Preview Page 3
