U74AC244

OCTAL BUFFERS/DRIVERS

U74AC244 Datasheet (245.25 KB)

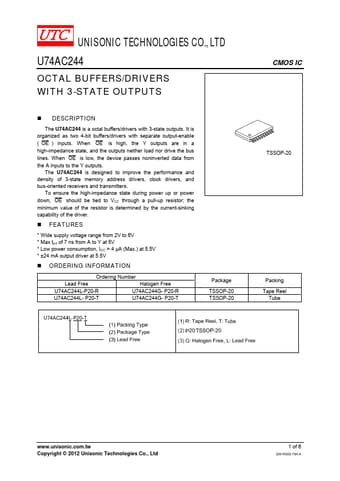

Preview of U74AC244 PDF

Datasheet Details

Part number:

U74AC244

Manufacturer:

Unisonic Technologies

File Size:

245.25 KB

Description:

Octal buffers/drivers.

U74AC244 Features

* Wide supply voltage range from 2V to 6V

* Max tpd of 7 ns from A to Y at 5V

* Low power consumption, ICC = 4 μA (Max.) at 5.5V

* ±24 mA output driver at 5.5V www.DataSheet.net/

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AC244L-P20-R U74AC244G- P20-

U74AC244 General Description

CMOS IC The U74AC244 is a octal buffers/drivers with 3-state outputs. It is organized as two 4-bit buffers/drivers with separate output-enable ( OE ) inputs. When OE is high, the Y outputs are in a high-impedance state, and the outputs neither load nor drive the bus lines. When OE is low, the devi.
