U74AC240 - OCTAL BUFFERS/DRIVERS

U74AC240 Description

UNISONIC TECHNOLOGIES CO., LTD U74AC240 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS * .
CMOS IC The U74AC240 is a octal buffers/drivers with 3-state outputs.

U74AC240 Features

* Wide Supply Voltage Range from 2V to 6V
* Max tPD of 6.5 ns from A to Y at 5V
* Low Power Consumption, ICC = 4μA (Max. ) at 5.5V
* ±24mA Output Driver at 5.5V www. DataSheet. net/
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AC240L-P20-R U74AC240G-P20-R

📥 Download Datasheet

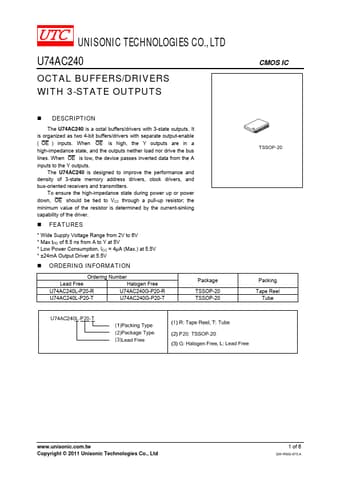

Preview of U74AC240 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74AC240
Manufacturer
Unisonic Technologies
File Size
223.86 KB
Datasheet
U74AC240_UnisonicTechnologies.pdf
Description
OCTAL BUFFERS/DRIVERS
