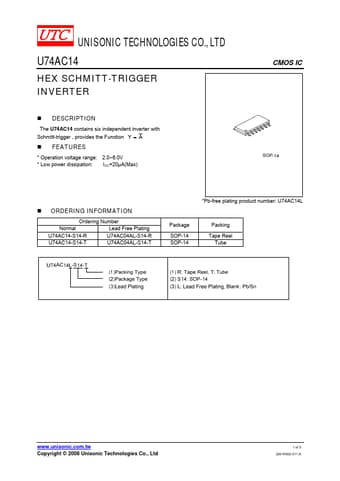

U74AC14 Datasheet, Inverter, Unisonic Technologies

U74AC14 Features

• Inverter
• Operation voltage range: 2.0~6.0V
• Low power dissipation: ICC=20μA(Max)
• Pb-free plating product number: U74AC14L
• ORDERING INFORMATION Ordering

PDF File Details

Part number:

U74AC14

Manufacturer:

Unisonic Technologies

File Size:

186.48kb

Download:

📄 Datasheet

Description:

Hex schmitt-trigger inverter. CMOS IC The U74AC14 contains six independent inverter with Schmitt-trigger , provides the Function Y = A

FEATURES

TAGS

U74AC14

Unisonic Technologies
