UTCPC1366 Datasheet, Circuit, Unisonic Technologies

UTCPC1366 Features

  • Circuit
  • High input sensitivity Typ.30dBµ.
  • Key and peak controllable AGC.
  • Operating voltage down to 7V.
  • Wide video bandwidth suitable for modulation IF of 4.5

PDF File Details

Part number:

UTCPC1366

Manufacturer:

Unisonic Technologies

File Size:

95.98kb

Download:

📄 Datasheet

Description:

Linear integrated circuit. UTC PC1366 is designed for B/W TV VIF processing purpose. It includes VIF amplifier,video low level detector RF AGC, IF AGC and noise

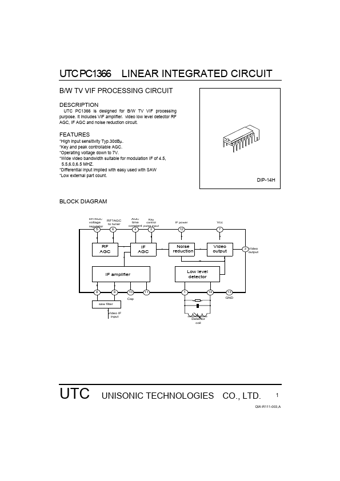

Datasheet Preview: UTCPC1366 📥 Download PDF (95.98kb)
Page 2 of UTCPC1366 Page 3 of UTCPC1366
