Datasheet Details
- Part number
- UTCTA2003
- Manufacturer
- Unisonic Technologies
- File Size
- 82.20 KB
- Datasheet
- UTCTA2003_UnisonicTechnologies.pdf
- Description
- AM/FM RADIO IC
UTCTA2003 Description
UTC TA2003 AM/FM RADIO IC .
LINEAR INTEGRATED CIRCUIT
The UTC TA2003 is AM/FM Radio IC ( FM F/E + AM/FM IF ) which is designed for AM/FM Radios.
FM IFT,AM IFT a.
UTCTA2003 Features
* FM IFT,AM IFT and FM Detector Coil aren’ t needed.
* Operating Supply Voltage Range
* VCC( opr ) = 1.8 ~ 7V ( Ta=25°C). SOP-16
DIP-16

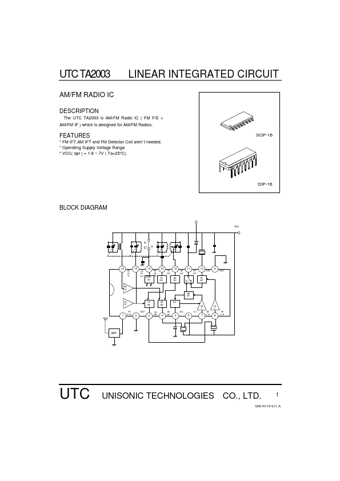

BLOCK DIAGRAM
Vcc
AM FM
16
AM RF IN
15
FM RF OUT
14
FM/AM SW
AM/ FM SW
13
FM OSC
12
AM OSC
11
DET OUT
10
QUAD
9
GND2
FM OSC
AM OSC
