UTCTA7613AP Datasheet - Unisonic Technologies

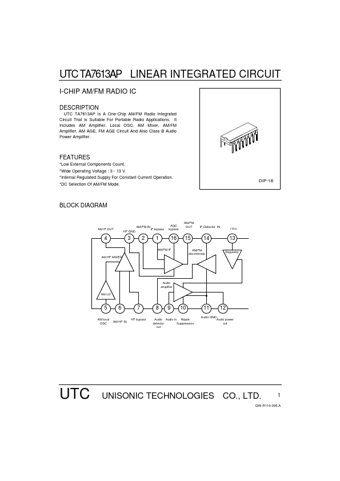

UTCTA7613AP I-CHIP AM/FM RADIO IC

UTCTA7613AP Features

* Low External Components Count.

* Wide Operating Voltage : 3 - 13 V.

* Internal Regulated Supply For Constant Current Operation.

* DC Selection Of AM/FM Mode. DIP-16 BLOCK DIAGRAM AM/FM OUT AM IF OUT AM/FM IN HF GND IF bypass AGC bypass IF Detector IN +Vcc 4 3 2 1 16 15 1

Datasheet Details

UTCTA7613AP

Unisonic Technologies

42.92 KB

I-chip am/fm radio ic.
