CHA2192 Datasheet - United Monolithic Semiconductors

24-26.5GHz Low Noise Amplifier

CHA2192 Features

* 1.8 dB noise figure

* 15 dB ± 1dB gain

* 10 dBm output power

* Very good broadband input matching

* DC power consumption, 40mA @ 3.5V

* Chip size : 1.67 x 0.97 x 0.10 mm Gain & NF ( dB ) 20 18 16 Gain 14 12 10 8 6 4 NF 2 0 16 18 20 22 24 26 28 30 32 34 Frequency ( GHz ) T

CHA2192 General Description

The CHA2192 is a two stages low noise amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly process. The circuit is manufactured with a HEMT process, 0.25µm g.

CHA2192 Datasheet (91.07 KB)

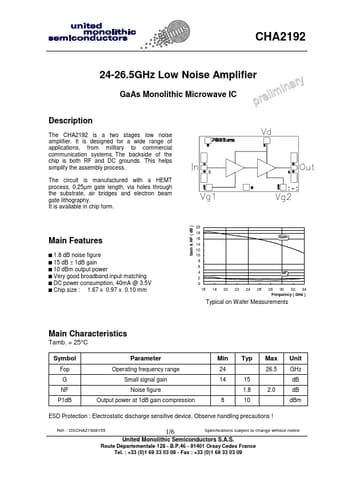

CHA2192 Datasheet Preview — Preview of CHA2192 PDF

Datasheet Details

Part number:

CHA2192

Manufacturer:

United Monolithic Semiconductors

File Size:

91.07 KB

Description:

24-26.5ghz low noise amplifier.
