CHA2194-99F - Low Noise Amplifier

Name: CHA2194-99F
SKU: CHA2194-99F-1564798

United Monolithic Semiconductors

📥 Download Datasheet

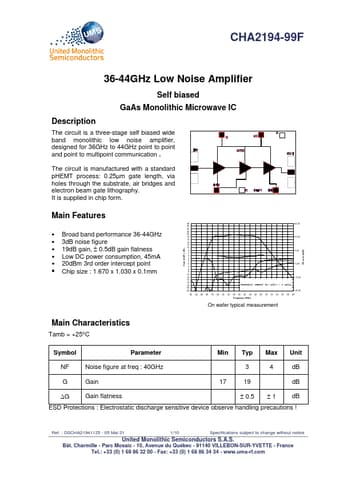

CHA2194-99F Datasheet Preview — Preview of CHA2194-99F PDF

Datasheet Details

Part number	CHA2194-99F
Manufacturer	United Monolithic Semiconductors
File Size	345.25 KB
Description	Low Noise Amplifier
Datasheet	CHA2194-99F-UnitedMonolithicSemiconductors.pdf

CHA2194-99F Product details

Description

The circuit is a three-stage self biased wide band monolithic low noise amplifier, designed for 36GHz to 44GHz point to point and point to multipoint communication .

Features

Broad band performance 36-44GHz.
3dB noise figure.
19dB gain, ± 0.5dB gain flatness.
Low DC power consumption, 45mA.
20dBm 3rd order intercept point.
Chip size : 1.670 x 1.030 x 0.1mm 28 25,00 26 24 22 20 18 15,00 16 14 12 10 8 5,00 6 4 2 0 -2 -5,00 -4 -6 -8 -10 -12 -15,00 -14 -16 -18 dBS21 NF dBS11 dBS22 -20 -22 -25,00 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 Frequency ( GHz ) On wafer typical measurement.
