CHA2193

20-30GHz Low Noise Amplifier

CHA2193 Features

* 2.0 dB noise figure

* 18 dB ± 1dB gain

* 8 dBm output power (-1dB gain comp.)

* Very good broadband input matching

* DC power consumption, 60mA @ 3.5V

* Chip size : 2.07 x 1.03 x 0.10 mm 20 18 Gain (dB) 16 14 12 10 8 6 4 NF (dB) 2 0 20 21 22 23 24 25 26 27 28 29 30 31 32 3

CHA2193 General Description

The CHA2193 is a three stages low noise amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly process. The circuit is manufactured with a pHEMT process, 0.25µ.

CHA2193 Datasheet (139.85 KB)

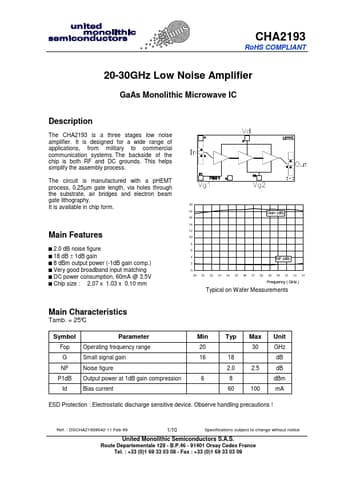

Preview of CHA2193 PDF

Datasheet Details

Part number:

CHA2193

Manufacturer:

United Monolithic Semiconductors

File Size:

139.85 KB

Description:

20-30ghz low noise amplifier.
