CHA2193-99F, 20-30GHz Low Noise Amplifier

CHA2193-99F 20-30GHz Low Noise Amplifier GaAs Monolithic Microwave IC .
The CHA2193-99F is a three stages low noise amplifier.

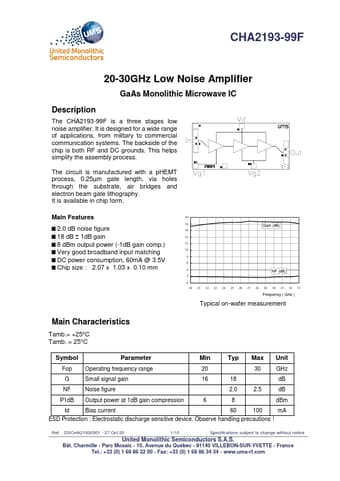

datasheet Preview Page 1 from Datasheet4u.com

CHA2193-99F-UnitedMonolithicSemiconductors.pdf

CHA2193-99F Datasheet Preview — Preview of CHA2193-99F PDF

Datasheet Details

Part number:

CHA2193-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

242.99 KB

Description:

20-30GHz Low Noise Amplifier

Features

* 2.0 dB noise figure
* 18 dB  1dB gain
* 8 dBm output power (-1dB gain comp. )
* Very good broadband input matching
* DC power consumption, 60mA @ 3.5V
* Chip size : 2.07 x 1.03 x 0.10 mm 20 18 Gain (dB) 16 14 12 10 8 6 4 NF (dB) 2 0 20 21 22 23 24 25 26 27 28 2

Applications

* from military to commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly process. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It
