CHA2194

36-44GHz Low Noise Amplifier

CHA2194 Features

* Broad band performance 36-44GHz 3dB noise figure 19dB gain, ± 0.5dB gain flatness Low DC power consumption, 45mA 20dBm 3rd order intercept point Chip size : 1.670 x 0.970x 0.1mm Main Characteristics Tamb = +25°C 28 25,00 26 24 22 20 18 15,00 16 14 12 10 8 5,00 6 4 2 0 -2 -5,00 -4 -6 -8 -10 -12 -15,

CHA2194 General Description

The circuit is a three-stage self biased wide band monolithic low noise amplifier, designed for 36GHz to 44GHz point to point and point to multipoint communication . The circuit is manufactured with a standard pHEMT process: 0.25µm gate length, via holes through the substrate, air bridges and electr.

CHA2194 Datasheet (214.50 KB)

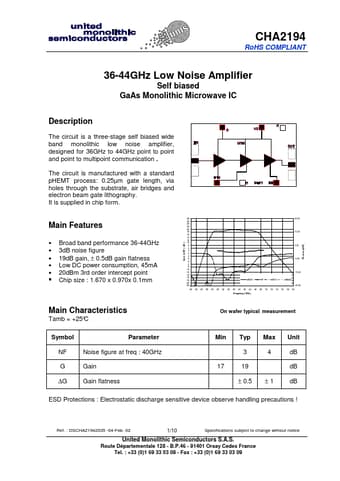

Preview of CHA2194 PDF

Datasheet Details

Part number:

CHA2194

Manufacturer:

United Monolithic Semiconductors

File Size:

214.50 KB

Description:

36-44ghz low noise amplifier.
