CHA2291 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2291 Features

  • Amplifier Frequency range: 10-18GHz 2.2dB Noise Figure. 23dB gain Gain control range: 25dB DC power consumption: 180mA @ 5V Chip size: 2.49 X 1.23 X 0.10 mm 26 24 22 20 18 16 14 12 10 8 6 4 2 0

PDF File Details

Part number:

CHA2291

Manufacturer:

United Monolithic Semiconductors

File Size:

408.81kb

Download:

📄 Datasheet

Description:

10-18ghz low noise / variable gain amplifier. The CHA2291 is a high gain four-stage monolithic low noise amplifier with variable gain. It is designed for a wide range of applicat

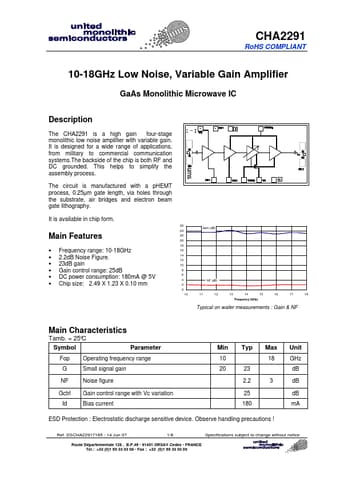

Datasheet Preview: CHA2291 📥 Download PDF (408.81kb)
Page 2 of CHA2291 Page 3 of CHA2291

CHA2291 Application

  • Applications from military to commercial communication systems.The backside of the chip is both RF and DC grounded. This helps to simplify the asse
