CHA2293 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2293 Features

  • Amplifier Frequency range : 24-30GHz 3dB Noise Figure. 24dB gain Gain control range: 15dB Low DC power consumption, 160mA @ 5V Chip size : 2.32 X 1.23 X 0.10 mm Typical on wafer measurements :Ga

PDF File Details

Part number:

CHA2293

Manufacturer:

United Monolithic Semiconductors

File Size:

180.37kb

Download:

📄 Datasheet

Description:

24.5-29.5ghz low noise / variable gain amplifier. The CHA2293 is a high gain four-stage monolithic low noise amplifier with variable gain. It is designed for a wide range of applicati

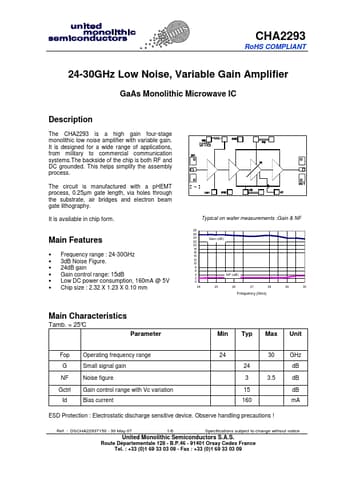

Datasheet Preview: CHA2293 📥 Download PDF (180.37kb)
Page 2 of CHA2293 Page 3 of CHA2293

CHA2293 Application

  • Applications from military to commercial communication systems.The backside of the chip is both RF and DC grounded. This helps simplify the assembl
