CHA2295 6 - 11GHz Buffer Splitter Amplifier

The CHA2295 is a broadband buffer splitter three-stage monolithic amplifier. It is designed for a wide range of applications, from military to commercial communication systems. The backside of the chip is both RF and DC grounds. This helps to simplify the assembly process. The circuit is manufacture.

CHA2295 Features

* Broadband performance: 6-11GHz

* 14dBm saturated output power.

* 18dB ±1.5dB gain flatness

* Good broadband matching

* Low DC power consumption: 160mA @ 3.5V

* Chip size: 2.26 X 1.33 X 0.10 mm 20 19 18 17 16 15 14 13 12 Gain channel 1 11 Gain channel 2 10 1 2 3 4 5 6 7 8 9

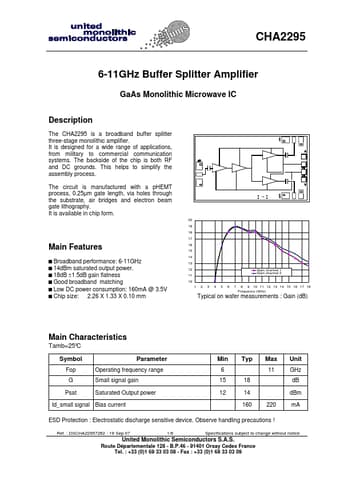

CHA2295_UnitedMonolithicSemiconductors.pdf
