CHA2293-99F Datasheet, Amplifier, United Monolithic Semiconductors

CHA2293-99F Features

  • Amplifier
  • Frequency range : 24-30GHz
  • 3dB Noise Figure.
  • 24dB gain
  • Gain control range: 15dB
  • Low DC power consumption, 160mA @ 5V
  • Chip siz

PDF File Details

Part number:

CHA2293-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

268.44kb

Download:

📄 Datasheet

Description:

Variable gain amplifier. The CHA2293-99F is a high gain four-stage monolithic low noise amplifier with variable gain. It is designed for a wide range of appli

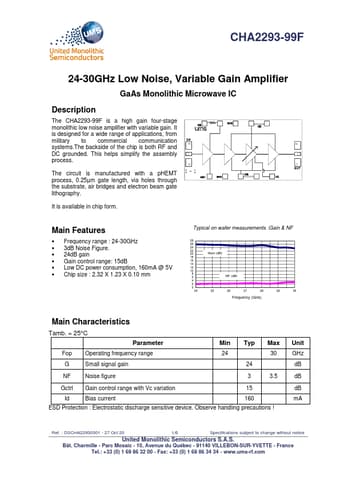

Datasheet Preview: CHA2293-99F 📥 Download PDF (268.44kb)
Page 2 of CHA2293-99F Page 3 of CHA2293-99F

CHA2293-99F Application

  • Applications from military to commercial communication systems.The backside of the chip is both RF and DC grounded. This helps simplify the assembl
