CHA2294 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2294 Features

  • Amplifier Frequency range: 35-40GHz 4.0dB Noise Figure. 22dB gain Gain control range: 15dB Low DC power consumption, 120mA @ 5V Chip size: 2.32 X 1.235 X 0.10 mm 26 24 22 20 18 16 14 12

PDF File Details

Part number:

CHA2294

Manufacturer:

United Monolithic Semiconductors

File Size:

177.01kb

Download:

📄 Datasheet

Description:

35-40ghz low noise/ variable gain amplifier. The CHA2294 is a high gain four-stage monolithic low noise amplifier with variable gain. It is designed for a wide range of applicati

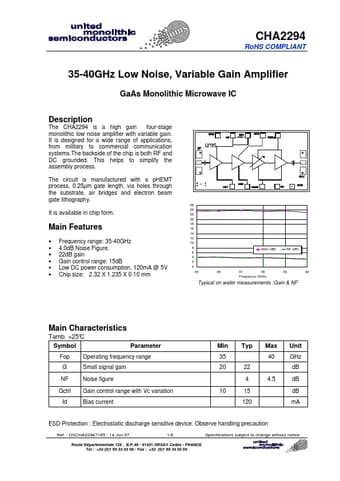

Datasheet Preview: CHA2294 📥 Download PDF (177.01kb)
Page 2 of CHA2294 Page 3 of CHA2294

CHA2294 Application

  • Applications from military to commercial communication systems.The backside of the chip is both RF and DC grounded. This helps to simplify the asse
