CHA2292 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2292 Features

  • Amplifier Frequency range: 16-24GHz 2.8dB Noise Figure. 25dB Gain 15dB Gain control range DC power consumption: 160mA @ 5V Chip size: 2.32 X 1.23 X 0.10mm Main Characteristics Tamb. = 25° 30 28

PDF File Details

Part number:

CHA2292

Manufacturer:

United Monolithic Semiconductors

File Size:

148.68kb

Download:

📄 Datasheet

Description:

17-24ghz low noise / variable gain amplifier. The CHA2292 is a high gain four-stage monolithic low noise amplifier with variable gain. It is designed for a wide range of applicati

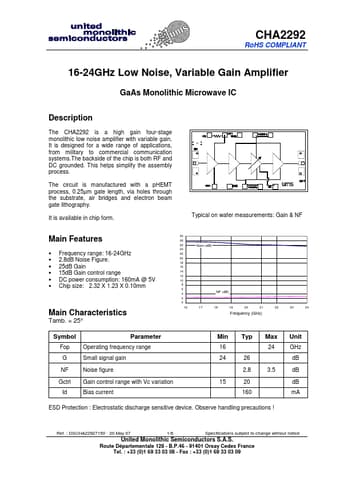

Datasheet Preview: CHA2292 📥 Download PDF (148.68kb)
Page 2 of CHA2292 Page 3 of CHA2292

CHA2292 Application

  • Applications from military to commercial communication systems.The backside of the chip is both RF and DC grounded. This helps simplify the assembl
