FDC6312P Datasheet - VBsemi

FDC6312P, Dual P-Channel 20V MOSFET

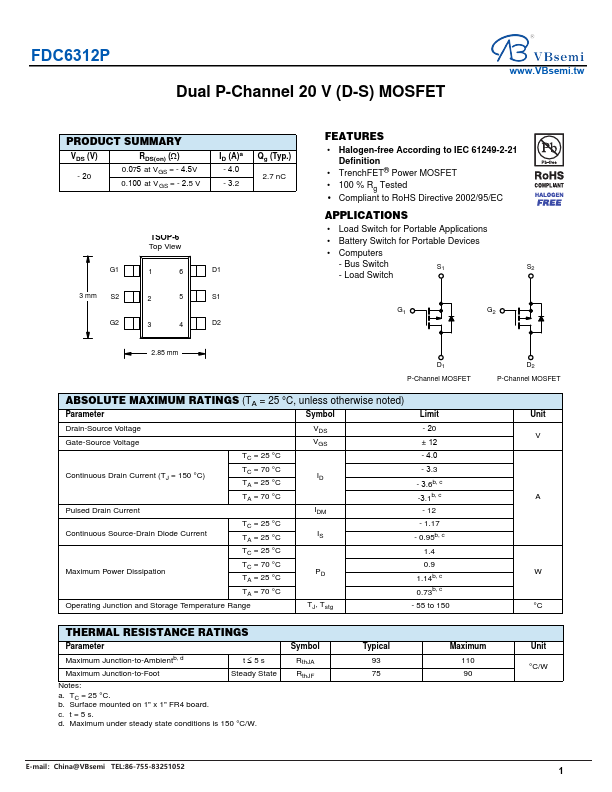

FDC6312P Dual P-Channel 20 V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) - 20 RDS(on) () 0.075 at VGS = - 4.5V 0.100 at VGS = - 2.5 V ID.

datasheet Preview Page 1 from Datasheet4u.com

FDC6312P-VBsemi.pdf

FDC6312P Datasheet Preview — Preview of FDC6312P PDF

Datasheet Details

Part number:

FDC6312P

Manufacturer:

VBsemi

File Size:

880.65 KB

Description:

Dual P-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch for Portable Applications
* Battery Switch for Portable Devices
* Computers - Bus Switch S1 S2 - Load Switch G1 G2 2.85 mm D1 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Volta
