IHLP2525BD-01, IHLP-2525BD-01, High Current Inductor

www.DataSheet4U.com IHLP-2525BD-01 Vishay Dale Low Profile, High Current Inductor .
IHLP-2525BD-01 MODEL 1.

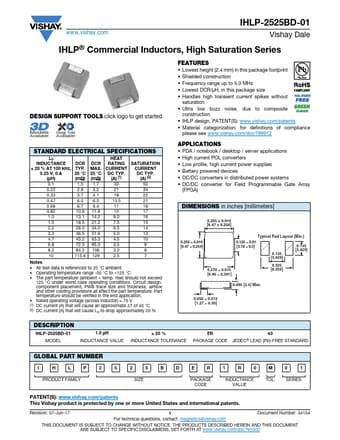

datasheet Preview Page 1 from Datasheet4u.com

IHLP-2525BD-01_VishaySiliconix.pdf

IHLP2525BD-01 Datasheet Preview — This datasheet PDF includes multiple part numbers: IHLP2525BD-01, IHLP-2525BD-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IHLP2525BD-01, IHLP-2525BD-01

Manufacturer:

Vishay ↗ Siliconix

File Size:

125.63 KB

Description:

High Current Inductor

Note:

This datasheet PDF includes multiple part numbers: IHLP2525BD-01, IHLP-2525BD-01.
Please refer to the document for exact specifications by model.

Features

* Lowest height (2.4 mm) in this package footprint
* Shielded construction
* Frequency range up to 5.0 MHz
* Lowest DCR/µH, in this package size Manufactured under one or more of the following: US Patents; 6,198,375/6,204,744/6,449,829/6,460,244. Several foreign paten

Applications

* STANDARD ELECTRICAL SPECIFICATIONS Lo INDUCTANCE µH ± 20 % at 100 kHz, 0.25 V, 0A 0.1 0.22 0.33 0.47 0.68 0.82 1.0 1.5 2.2 3.3 4.7 6.8 8.2 HEAT RATING SATURATION CURRENT CURRENT DCR mΩ DCR mΩ DC AMPS3 DC AMPS4 TYPICAL MAX TYPICAL TYPICAL 25 °C 25 °C 1.5 2.9 3.7 6 8.7 10.6 13.1 18.5 28 36.5 45.2 72.5
