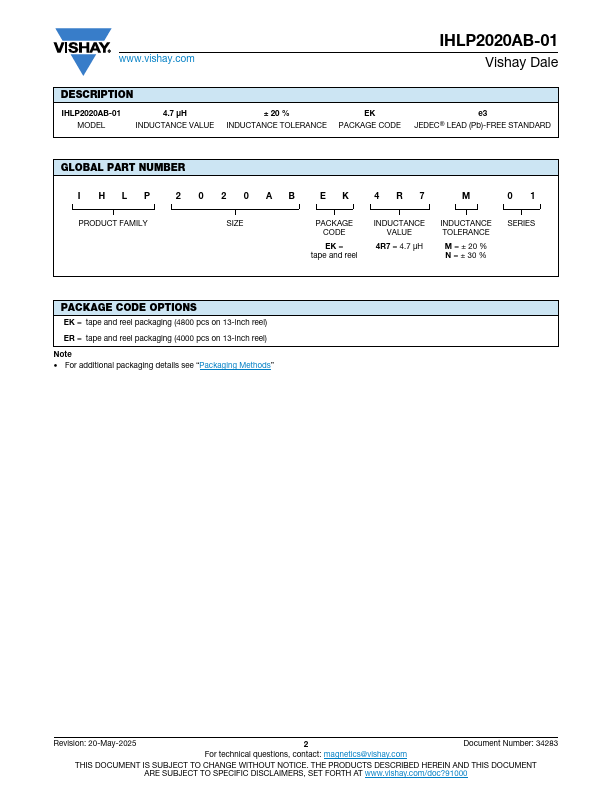

IHLP2020AB-01 MODEL 4.7 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EK PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 2 0 2 0AB EK 4R7 M 01 PRODUCT FAMILY SIZE PACKAGE CODE EK = tape and reel INDUCTANCE VALUE 4R7 = 4.7 μH INDUCTANCE TOLERANCE M = ± 20 % .

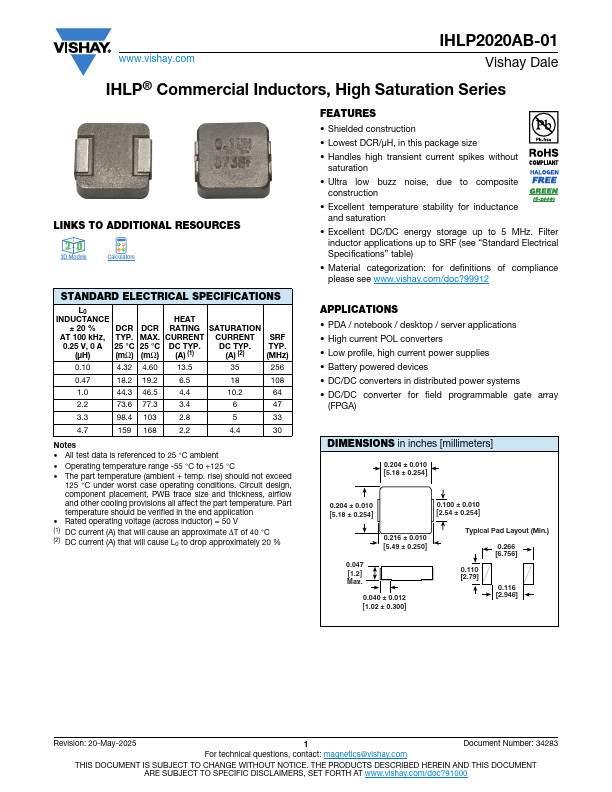

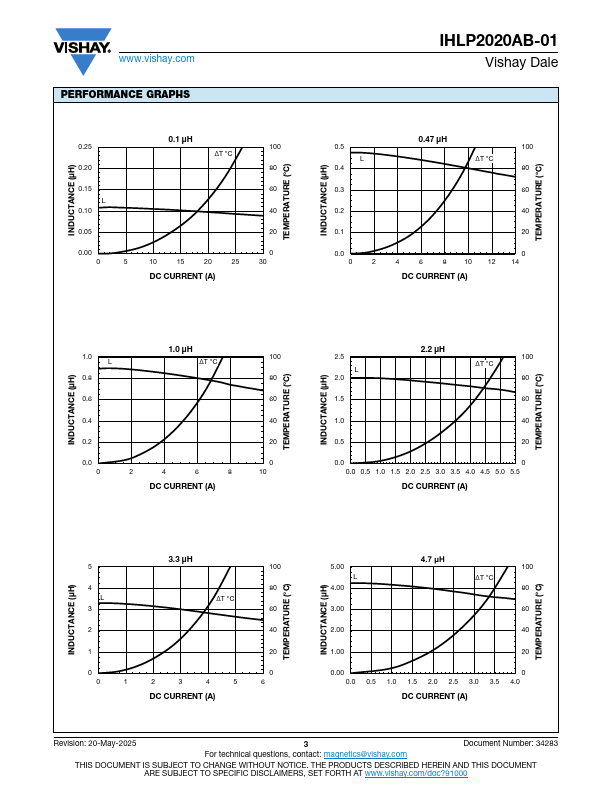

www.vishay.com IHLP2020AB-01 Vishay Dale IHLP® Commercial Inductors, High Saturation Series LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Calculators STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (mΩ) (mΩ) (A) (1) (A) (2) (MHz) 0.10 4.32 4.60 13.5 35 256 0.47 18.2 19.2 6.5 18 108 1.0 44.3 46.5 4.4 10.2 64 2.2 73.6 77.3 3.4 6 47 3.

IHLP2020AB-01 Features

* Shielded construction

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite construction

* Excellent temperature stability for inductance and saturation

* Excellent D
